Alucoworld ▎PVDF Aluminum Composite Panel

0 Comments

1.What are the main materials used for exterior wall decoration?

Excellent exterior walls can give buildings different styles, whose decoration should pay attention to safety, environmental protection, durability, weather resistance and decoration. The main decoration used for exterior wall are : decorative stone, glass curtain wall, exterior wall face brick, etc. The former three kinds of decorative materials have various problems:
Decorative stone:
It is easy to be exposed to external vibration to form bright lines, easy to break, strong oil absorption, poor fire resistance, and difficult construction, high cost, radiation, etc.
Glass curtain wall:

The glass curtain wall causes changing images, causing visual fatigue to pedestrians and drivers, easily leading to accidents and causing “light pollution”.


Exterior wall face brick:
It consumes large amounts of energy and land resource, and it is unsafe for use.

Aluminium plastic composite panel :
High strength, easy to maintain, strong weathering and acid resistance; simple processing, easy to use; strong plasticity, impact resistance, strong shock resistance, etc. acm panels

2.The advantages  of PVDF

(1)The introduction of PVDF

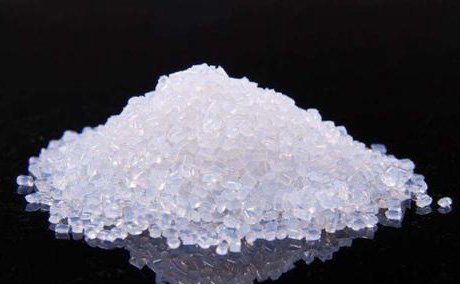

PVDF polyvinylidene fluoride, whose appearance is translucent or white powder or particles, tightly arranged between molecular chains, and it has strong hydrogen bonds, its oxygen index is 46%, so it is non-flammable, its crystallinity is 65% to 78%, and density is 1.17~1.19g/m3, melting point is 170°C, long-term use temperature is -40~150°C

(2)Features of PVDF
  • PVDF has excellent chemical corrosion resistance, high temperature color degeneration and oxidation resistance.
  • PVDF has excellent wear resistance, flexibility, high anti-inflation strength and impact resistance.
  • PVDF has excellent UV resistance and high energy radiation.
  • PVDF has poor hydrophilicity.
  • Fluorinated resin can be ejected and extruded from pvdf.
  • Good heat resistance and high dielectric strength.

3.The advantages of Polyvinylidene fluoride aluminum plastic composite board when compared with other exterior wall decorative materials:

  • Waterproof: It will not be corroded when faced with wind and rain.
  • Weather resistance: aluminium plastic composite panel can not be faded under the environment of high temperature and sunlight. It can be used for 10 to 15 years and is durable.
  • Self-cleaning property: aluminum plastic board is widely used in exterior walls. It is also easy to clean due to its self-cleaning property and remains brilliant for many years.
  • Easy installation and modeling: the aluminum plastic board has the characteristics of easy modeling, simple construction, good decorative effect. The color is rich and bright, and the color can be changed to maintain the freshness of the building.
  • Safety and environmental protection: non-toxic and environment-friendly plate, which will not cause "light pollution", no radiation, no potential safety risks of falling, etc.
  • Superior corrosion, pollutant resistance .

  • Even coating, various colors

4.Alucoworld pvdf aluminium plastic boards:

Specifications of Alucoworld aluminum composite panel:
In order to meet the needs of different customers and deal with the decoration of different applications, there are several specifications of Alucoworld aluminum composite panel, which can be customized according to customer needs:
A: Total thickness: 0.50*0.50mm, 0.40*0.40mm, 0.30*0.30mm, 0.21*0.21mm, 0.15*0.15mm, 0.12mm*0.12mm, 0.10mm*0.10mm;
B: Width: 1000mm ,1220mm (regular),1250mm,1300mm, 1500mm, 1550mm, 1570mm, 1575mm (Maximum);
Note: if the thickness of aluminum is less than 0.20mm, it is not allowed to make aluminum plastic panel with width of more than 1500mm.
C. Length: 2440mm (regular), and tailored by customers' offers; 6500mm(Maximum);
D. Standard size: 1220mm (Width) * 2440mm (Length)
What protective film is used for pvdf aluminum composite panel?

The purpose of the protective film is to protect the product from damage during a series of transfer processes such as handling, inventory, transportation, processing, and installation. In the production process of artistic fluorocarbon aluminum composite panels, the protective film appears to be an excipient, which actually has a great effect and is an indispensable component of the aluminum composite panel product.

The selection of the protective film should fully consider the characteristics of the product, and consider the factors such as the variety of aluminum plastic composite panels, the coating material, and the smoothness of the surface. In order to avoid the phenomenon that the protective film is moved by the ultraviolet ray after the pvdf aluminum composite panel is installed on the curtain wall, the aluminum composite panel for the curtain wall should be a black and white protective film with good anti-UV effect.

Product quality:

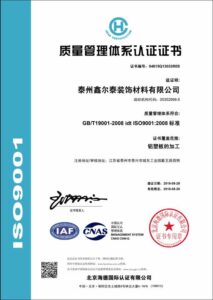

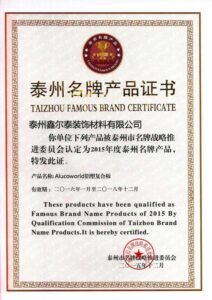

The company has passed three certifications of International Quality System (GB/T19001-2000), Occupational Health and Safety Management System (GB/T28001-2001), and Environmental Management System (GB/T24001-2004); It is the earliest enterprise to adopt international standard product mark. The company also received honors such as “China Famous Brand”, “Green Building Materials Products” and “China Market Credit AAA Grade Units” and so on.

Contact us

ALUCOWORLD

We always adhere to the people-oriented, science and technology as the guide, the international and domestic market-oriented, continue to develop and expand the scale of enterprises, improve the quality of products, strengthen the management of enterprises, and thus establish a set of quality assurance system and production operation system. The products are exported to the United States, Australia, Russia, Ukraine, Azerbaijan, Kazakhstan, Turkey, Iraq, Iran, Kuwait, Israel, the United Arab Emirates and other countries in the Middle East, as well as Southeast Asia and other countries and regions. They are favored by more and more merchants all over the world.
